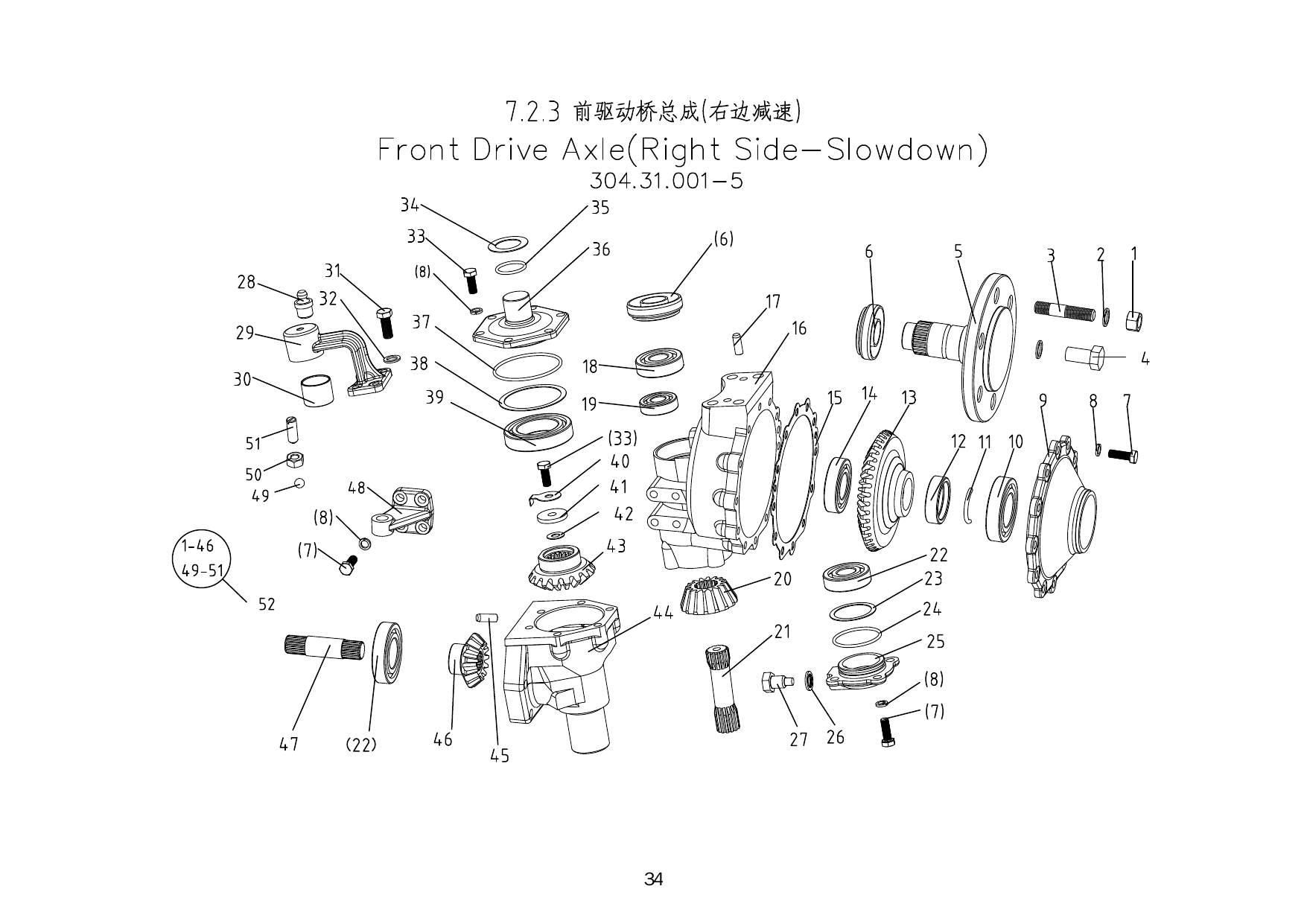

7.2.3 Передний ведущий мост (правый бортовой редуктор)

螺母 M18×1.5 Hex. nut M18×1.5

Spring washer 18

Double screw bolt

螺栓 M18×1.5×35 Hex. bolt M18×1.5×35

Drive shaft

防泥水油封 MC50×72×15 Oil-seal MC50×72×15

螺栓 M10×30 Hex. bolt M10×30

Spring washer 10

Drive shaft cover

Ball bearing 6209

Fixing ring of drive shaft

Drive shaft sleeve

Driven bevel gear of final drive

Ball bearing 6207

Gasket for drive shaft cover

Right final drive housing

销 A10×24 Straight pin A10×24

Ball bearing 61910

Tapered roller bearing 32909

Driving bevel gear of final drive

Vertical spindle

Ball bearing 6208

Adjusting shims

O形圈 75×2.65 O-ring seal 75×2.65

Lower bearing cover

16 Combined seal washer 16

Oil drain plug

M8×1 Grease cup M8×1

Right linking arm

Steering arm bushing

M12×40 Hex. head bolt M12×40

12 Шайба стопорная 12

M10×25 Hex. head bolt M10×25

Steering arm adusting shim Needed

O 34.5×2.65 O-ring seal 34.5×2.65

Upper Подшипник cover

O 85×2.65 O-ring seal 85×2.65

Adjusting shims for the first drive One set Two pcs for each size

6011 Ball Подшипник 6011

Lock washer

Blocking ring of upright Вал

Adjusting shims One set Two pcs for each size

Driven bevel Шестерня of the first drive

Upright Вал housing

A10×20 Straight Палец/Штифт A10×20

Driving bevel Шестерня of the first drive

Half Вал

Right steering trapezoid arm

8.7312G200b Ball 8.7312G200b 1 11/32＂

M10×1 Гайка M10×1

M10×1 Set screw M10×1
