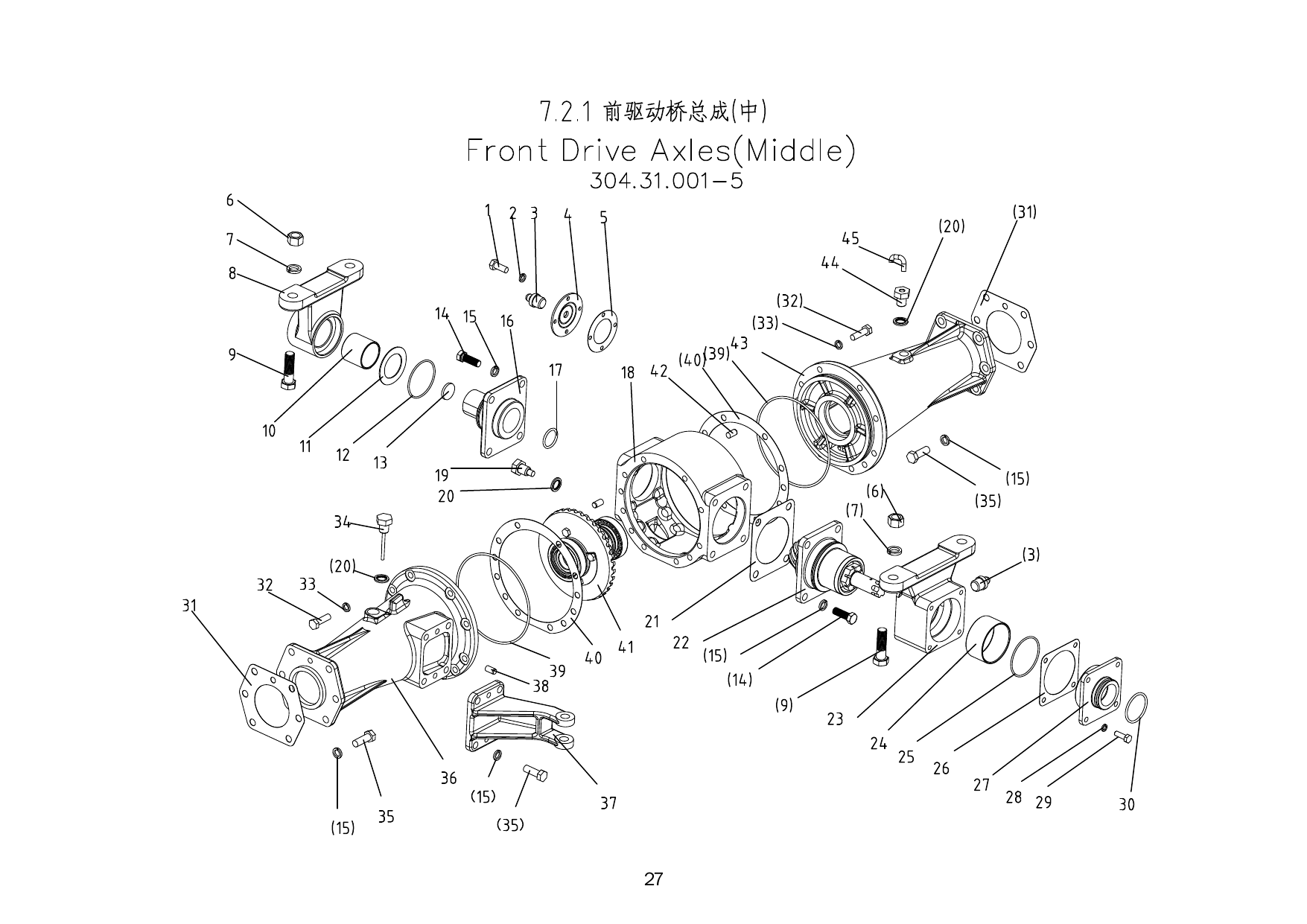

7.2.1 Передний ведущий мост (средняя часть)

螺栓 M6×12 Hex. bolt M6×12

Spring washer 6

油杯 M10×1 Grease nozzle M10×1

End cover of front pedestal

End cover gasket

M16 Hex. nut M16

Spring washer 16

Front pedestal

螺栓 M16×65 Hex. bolt M16×65

Front pedestal bush

Shims for front swing axle

O形圈 65×2.65 O-ring 65×2.65

Casing cap 24

螺栓 M12×1.5×35 Hex. bolt M12×1.5×35

Spring washer 12

Front swing axle

O形圈 69×3.55 O-ring 69×3.55

Main drive case

Oil drain plug

Copper washer 16

Shims for bearing seat

Bevel drive pinion assembly

Rear pedestal

Rear pedestal bush

O形圈 69×2.65 O-ring 69×2.65

Прокладка for end cover

End cover of rear pedestal

8 Шайба стопорная 8

M8×25 Hex. Head bolt M8×25

O 48.7×3.55 O-ring seal 48.7×3.55

Прокладка for Upright Вал housing

M10×35 Hex. head bolt M10×35

10 Шайба стопорная 10

Oil dipstick

M12×35 Hex. head bolt M12×35

Left half Вал housing

Power steering cylinder bracket

A10×16 Straight Палец/Штифт A10×16

O 160×3.55 O-ring seal 160×3.55

Shims for main drive case two set Two pcs for each size

Differential assembly

A10×20 Straight Палец/Штифт A10×20

Right half Вал housing

Vent plug

Vent pipe
