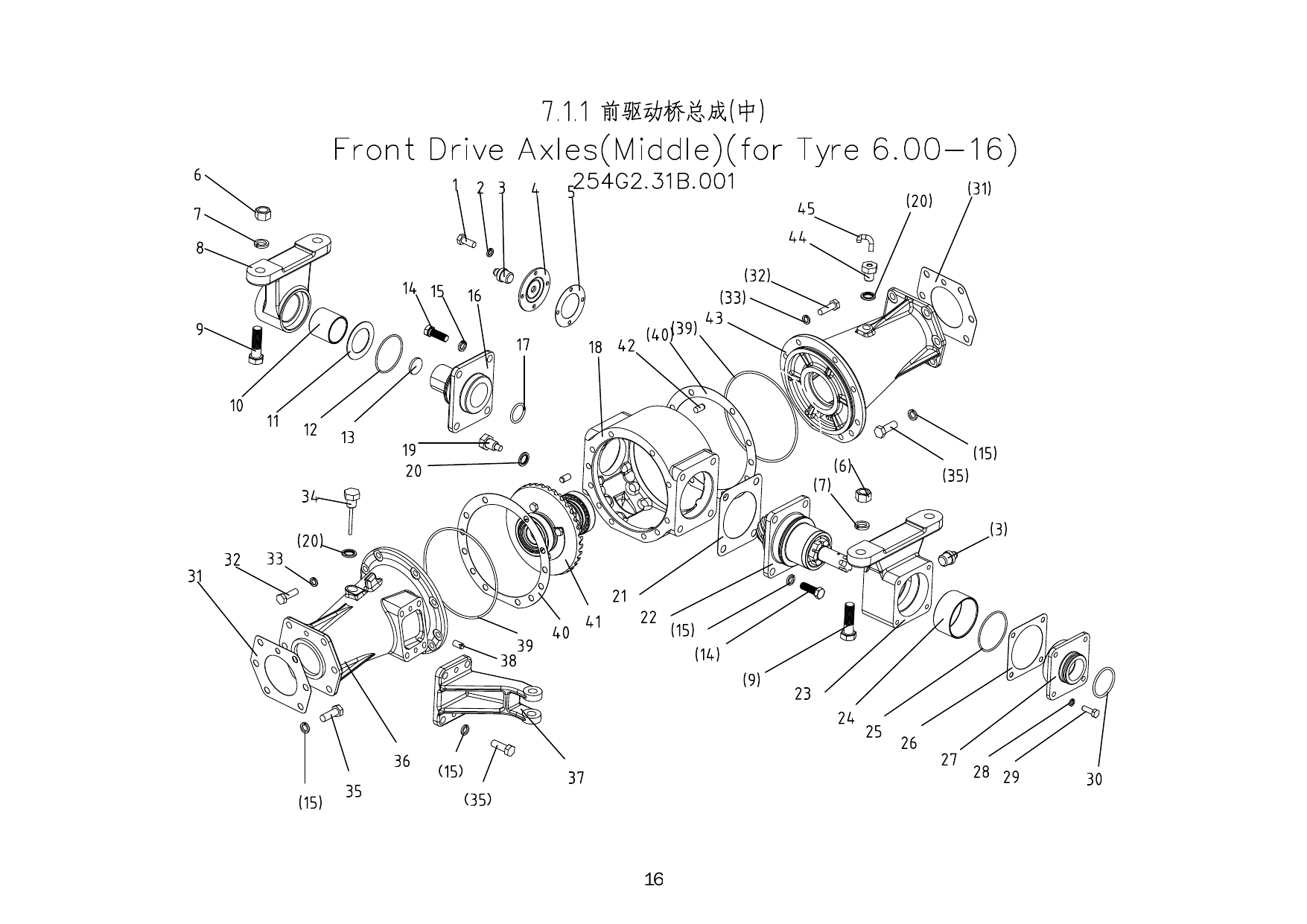

7.1.1 Front Drive Axles (Middle)(for Tyre 6.00-16)

M6×12 Hex. head bolt M6×12

6 Шайба стопорная 6

M10×1 Grease cup M10×1

End cover of front pedestal

End cover Прокладка

M16 Гайка M16

16 Шайба стопорная 16

Front pedestal

M16×65 Hex. head bolt M16×65

Front pedestal Втулка

Shims for front swing axle one set One pcs for each size

O 65×2.65 O-ring seal 65×2.65

T32003-88-24 24 Casing cap 24

M12×1.5×35 Hex. head bolt M12×1.5×35

12 Шайба стопорная 12

Front swing axle

O 69×3.55 O-ring seal 69×3.55

Main drive case

Oil drain plug

16 Copper washer 16

Shims for Подшипник Сиденье one set Two pcs for each size

Bevel drive pinion assembly

Rear pedestal

Rear pedestal Втулка

69×2.65 O 69×2.65 O-ring seal 69×2.65

Прокладка for end cover

End cover of rear pedestal

8 Шайба стопорная 8

M8×25 Hex. Head bolt M8×25

O 48.7×3.55 O-ring seal 48.7×3.55

Прокладка for Upright Вал housing

M10×35 Hex. head bolt M10×35

10 Шайба стопорная 10

Oil dipstick

M12×35 Hex. head bolt M12×35

Left half Вал housing

Power steering cylinder bracket

A10×16 Straight Палец/Штифт A10×16

O 160×3.55 O-ring seal 160×3.55

Shims for main drive case two set Two pcs for each size

Differential assembly

A10×20 Straight Палец/Штифт A10×20

Right half Вал housing

Vent plug

Vent pipe
