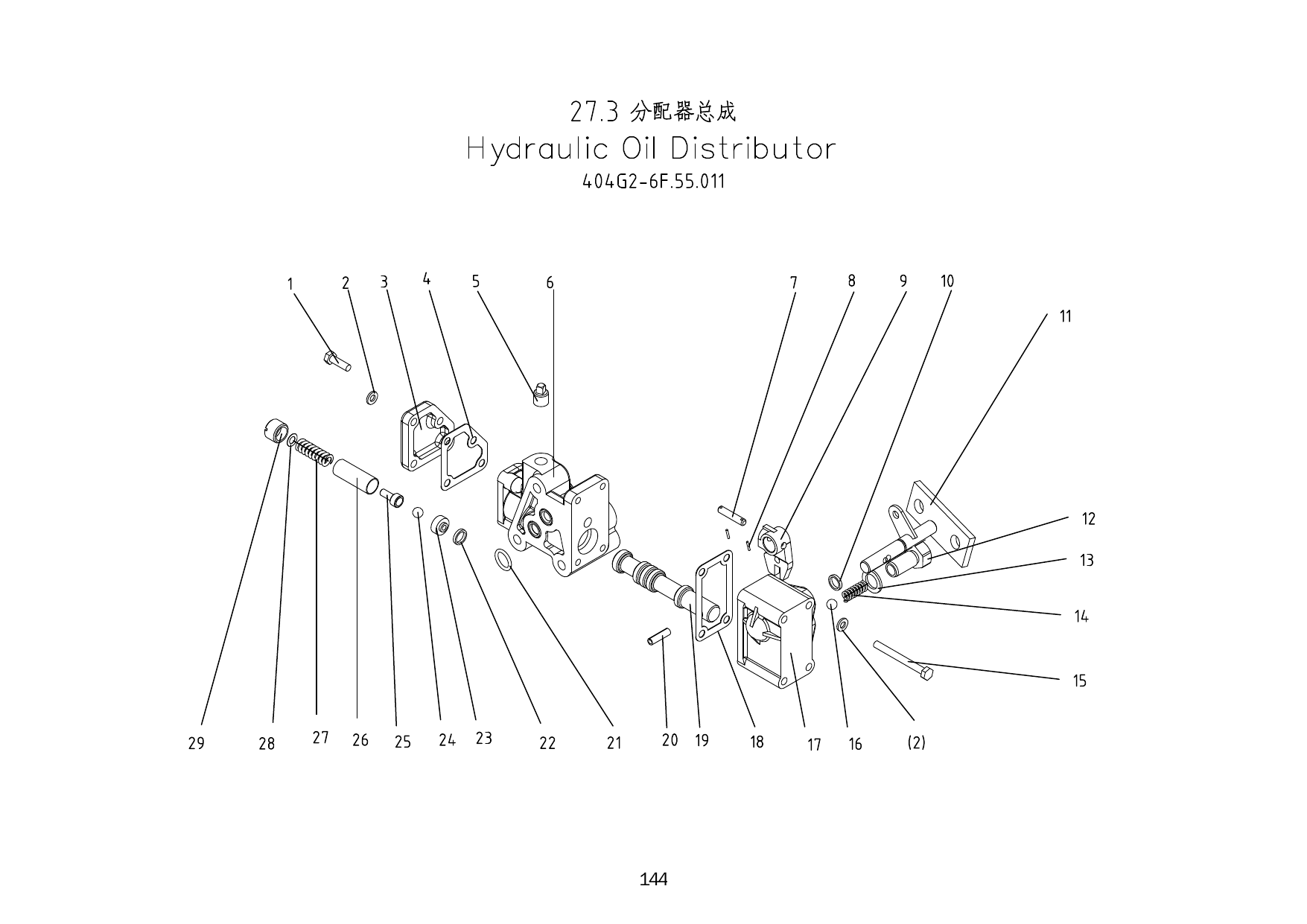

27.3 Hydraulic Oil Distributor

Нажмите номер на схеме, чтобы сразу увидеть нужные детали.

Навигация и фильтрыexpand_more

Модель техники

expand_more

Выберите узел

expand_more

70%

Система деталировки v4.0

sync

Калибровка схемы

dongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.comdongfeng-traktor.com

БЕЛТЕХФЕРМЪ

Список деталей

QTY

БЕЛТЕХФЕРМЪ

Узлы и детали

Выберите номер на схеме для уточнения артикула

ID	Артикул / OEM	QTY
1	GB/T5783-2000-M6×20	4
2	GB/T93-1987-6	8
3	200.55.131	1
4	200.55.132	1
5	GB/T3289.31-1982-R1/4	1
6	200.55.126-A	1
7	GB/T880-1986-6×30	1
8	GB/T91-2000-1.6×10	2
9	200.55.128	1
10	GB/T3452.1-1992-10.6×1.8	2
11	404G2-6F.55.013	1
12	200.55.129-1	1
13	JB-FT-CU-14	1
14	200.55.130	1
15	GB/T5783-2000-M6×60	4
16	GB/T308-2002-9.5	1
17	200.55.123	1
18	200.55.125	1
19	200.55.127	1
20	GB/T879.1-2000-6×22	1
21	GB/T3452.1-1992-17×2.65	2
22	GB/T3452.1-1992-10.6×2.65	1
23	200.55.138	1
24	GB/T308-2002-9	1
25	200.55.137	1
26	200.55.136	1
27	200.55.135-1	1
28	200.55.134	5
29	200.55.133	1
