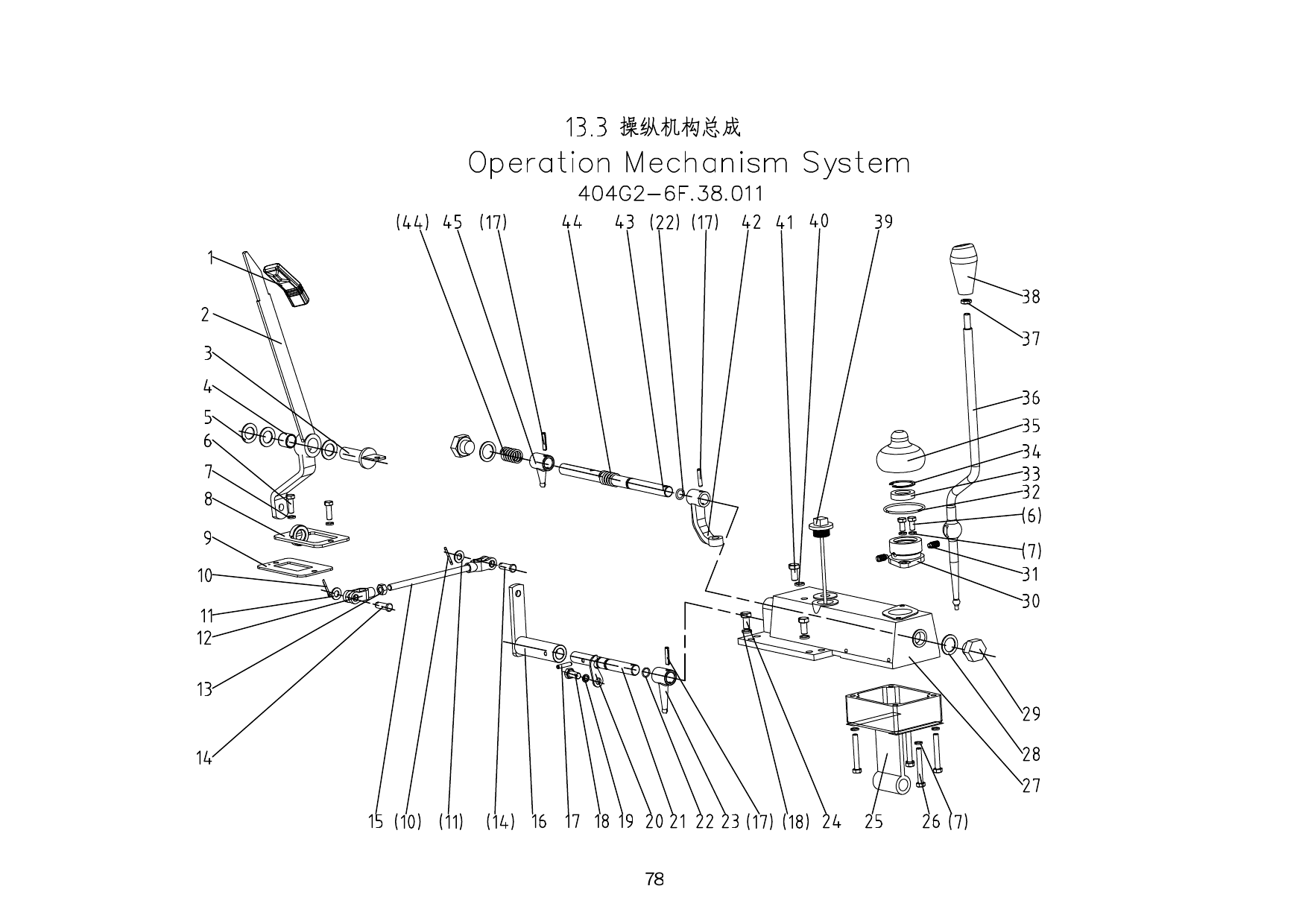

13.3 Operation Mechanism System

Handle, assistant Трансмиссия

Assistant Шестерня shift lever

() Locating Вал (1)

(20×20) Sleeve(20×20)

Nylon washer

M8×25 Болт M8×25

93-1987-8 8 Шайба пружинная 8

() Fixing board(1)

() Seal Прокладка(4)

3.2×24 Шплинт 3.2×24

10 Шайба 10

Fork

M10 Гайка M10

B10×30 Clevis Палец/Штифт with head B10×30

Pull rod, assistant Шестерня shift

Rocker arm

6×30 Slotted spring Палец/Штифт 6×30

M10×20 Болт M10×20

10 Шайба пружинная 10

Positioning plate

Revolving Вал, assistant Шестерня shift

O 13.2×2.65 O-ring 13.2×2.65

Shift block, assistant Шестерня shift

M10×25 Болт M10×25

Side-control bottom cover

M8×60 Болт M8×60

Side-control upper cover

22 Combined washer 22

Plug Болт

Шестерня-shift lever base

M8×16 Screw M8×16

Galvanized steel ПроводⅠ-1.40×260

Nylon base

40 Circlip for hole 40

Dust boot

Шестерня-shift lever

M10 Thin Гайка M10

Handle

Dipstick

12 Combined washer 12

Болт M12×1.25×16

external shift block

Control transfer lever

Spring

Inner shift block
