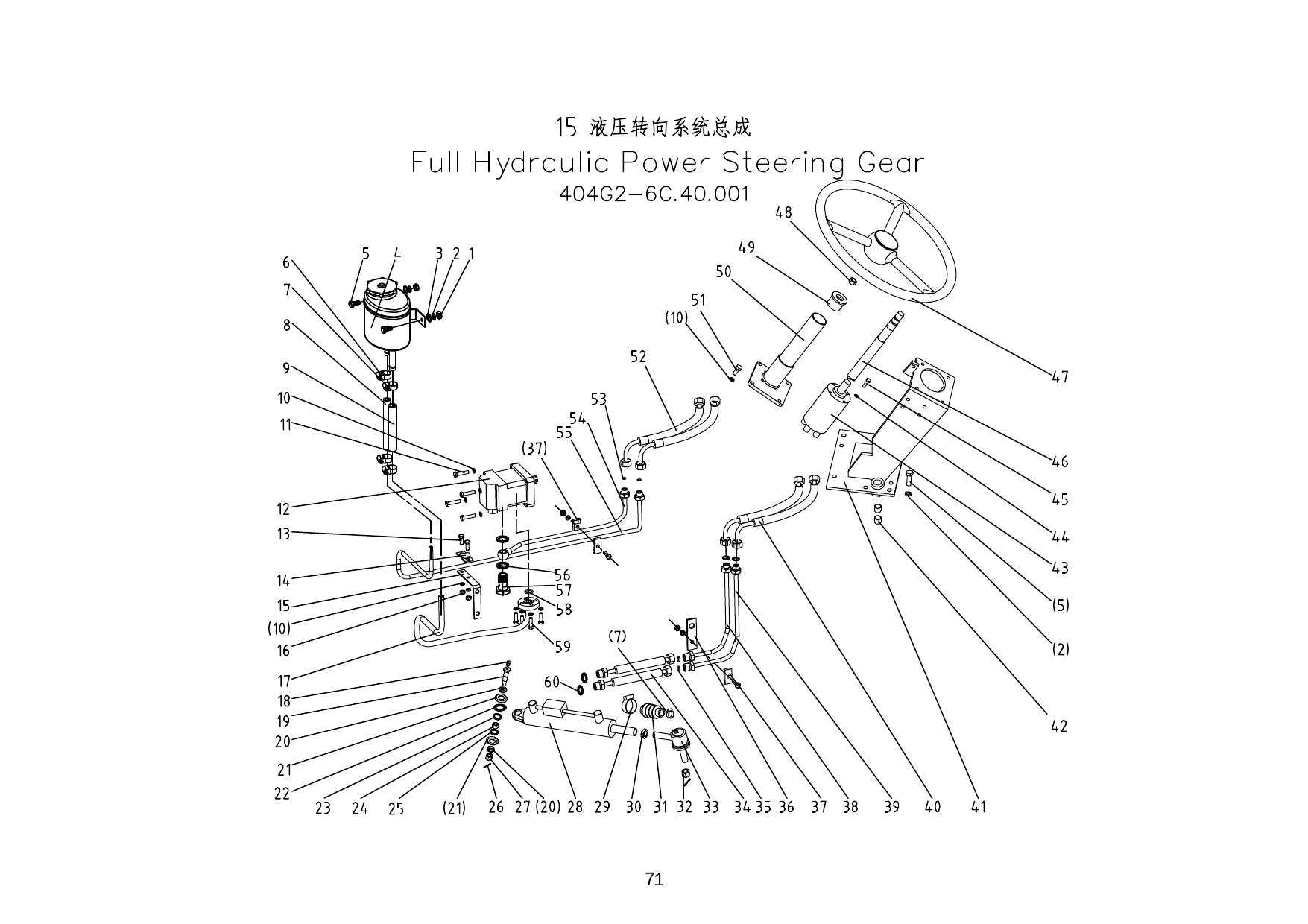

15 Full Hydraulic Power Рулевое управление Gear

M10 Hex.nut M10

10 Шайба стопорная 10

10 Шайба 10

Oil tank

M10×20 Hex.head bolt M10×20

10-200 Rubber pipe 10-200

13-200 Rubber pipe 13-200

8 Шайба стопорная 8

M8×35 Hex.head bolt M8×35

Constant flow Насос

M8×30 Hex.head bolt M8×30

Pressure base plate

Oil pipe fixed clip

M8 Hex.nut M8

Oil delivery pipe weldment

Палец/Штифт

Circlip stop ring

Dustproof cover

30 Circlip for Вал 30

Upper ball saet

Ball connector

Lower ball Сиденье

3.2×24 Шплинт 3.2×24

M14×1.5 Гайка M14×1.5

Steering cylinder assy

(44-64) 2A (44-64) Хомут 2A (44-64)

M18×1.5 Hex.nut M18×1.5

Rubber jacket

M14 Гайка M14

() Connector assy (Right)

Hose assy

O 10.6×2.65 O-ring seal 10.6×2.65

Oil pipe fixed clip

（） Pipe nip

() Steering cylinder pipe(1)

() Steering cylinder pipe(2)

Hose assy

Bracket weldment

Sleeve

Full Гидравлический steering Шестерня

6 Шайба стопорная 6

M6×25 Hex.head bolt M6×25

Steering Вал

Рулевое колесо assy

M16×1.5 Гайка M16×1.5

Rubber sleeve

Steering column weldment

M8×20 Hex.head bolt M8×20

Hose assy

O 8.5×1.8 O-ring seal 8.5×1.8

Oil delivery pipe weldment

Oil return pipe weldment

18 Combination washer 18

M18×1.5 Hollow bolt M18×1.5

O 18×2.65 O-ring seal 18×2.65

M8×40 Hex.head bolt M8×40

16 Combination washer 16
