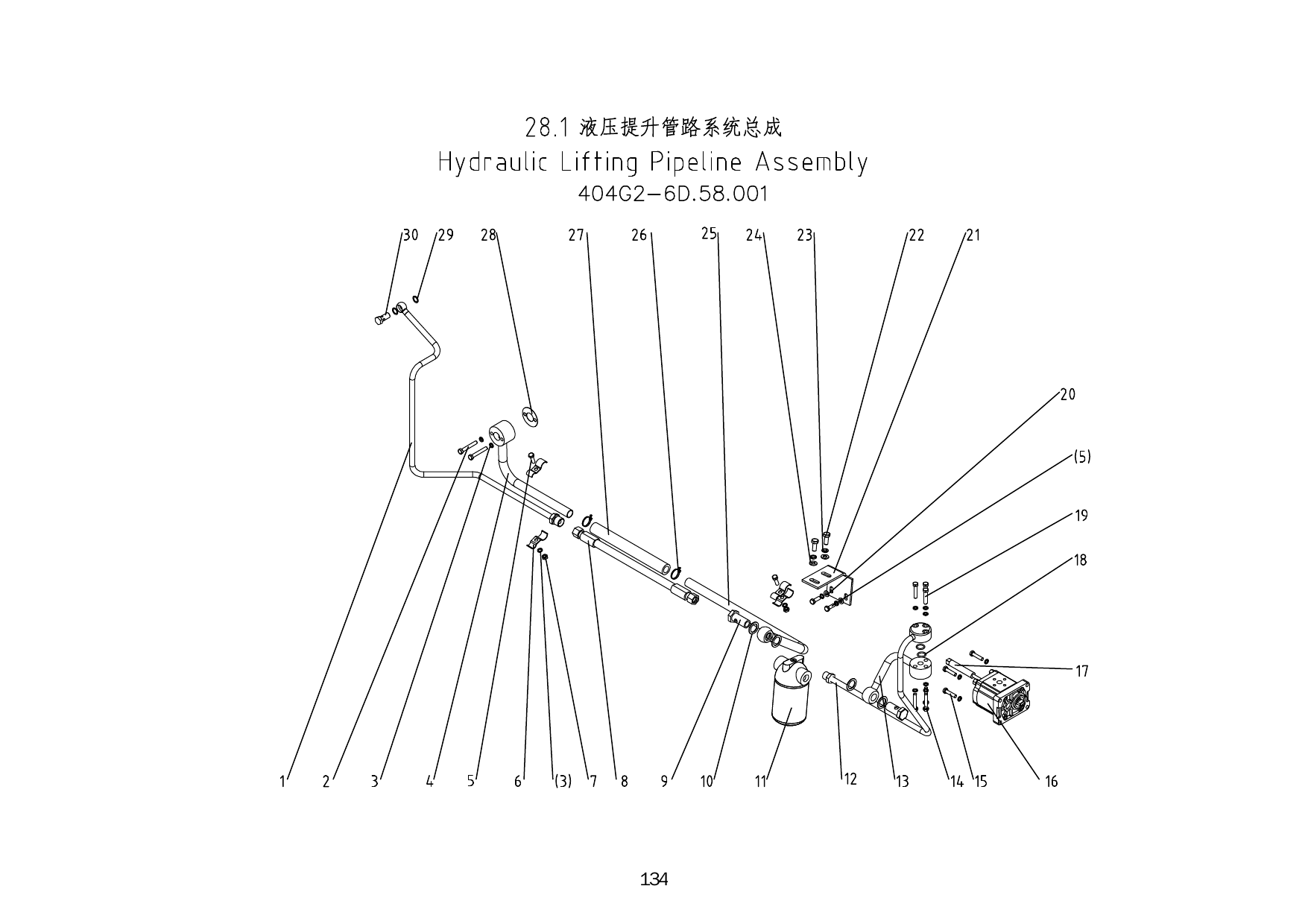

28.1 Hydraulic Lifting Pipeline Сборка

Inlet pipe weldment

M8×55 Hex. head bolt M8×55

8 Шайба стопорная 8

() Filter inlet pipe weldment(1)

M8×25 Hex. head bolt M8×25

Fixed clip

M8 Hex.nut M8

Hose assy

M22×1.5 Hollow bolt M22×1.5

22 Combination washer 22

Filter

Front inlet pipe weldment

Inlet pipe assy of Шестерня Насос

M8×45 Hex. head bolt M8×45

M8×35 Hex. head bolt M8×35

Шестерня Насос

Fixup bolt

O 18×2.65 O-ring seal 18×2.65

M8×40 Hex. head bolt M8×40

8 Шайба 8

Fix plank

M10×20 Hex. head bolt M10×20

10 Шайба стопорная 10

10 Шайба 10

() Filter inlet pipe weldment(2)

22×32×270 Hose 22×32×270

Прокладка бумажная

14 Combination washer 14

Hollow bolt
